CARIBBEAN SKYLIGHTS CORP
Engineered for Hurricane Protection. Designed for Modern Architecture.
Impact Series 100 combines high-performance aluminum construction, impact-resistant glazing and engineered configurations for residential and commercial applications in High-Velocity Hurricane Zones.
IMPACT SERIES 100
Protection Without Giving Up the Architecture
The Caribbean Skylights Corp catalog presents four impact products with Miami-Dade HVHZ / Florida Product Approval references: Fixed Window, Single & Double Hung, Horizontal Roller and French Door.
4
Impact Product Types
Fixed, hung, roller and French door.
119"
Maximum Fixed Panel
Up to 119″ × 119″ for the fixed-window system.
+80/-95
PSF
Maximum pressure shown for Fixed Window and Horizontal Roller.
176"
French Door Opening
Maximum total frame width including sidelites.
PRODUCT LINEUP
Fixed Window
Series 100 · FL42637
+80 / -95 PSF · up to 119″ × 119″. Multiple geometric configurations available.
Single & Double Hung
Series 100 · FL42638
+80 / -80 PSF · up to 41″ sash width × 95″ panel height.
Miami-Dade HVHZ
Horizontal Roller
Series 100 · FL42639
+80 / -95 PSF · up to 107″ × 62″ with integrated isobaric chamber.
French Door
Series 100 · FL47458
+70 / -70 PSF · up to 80″ double-door width × 120″ panel height.

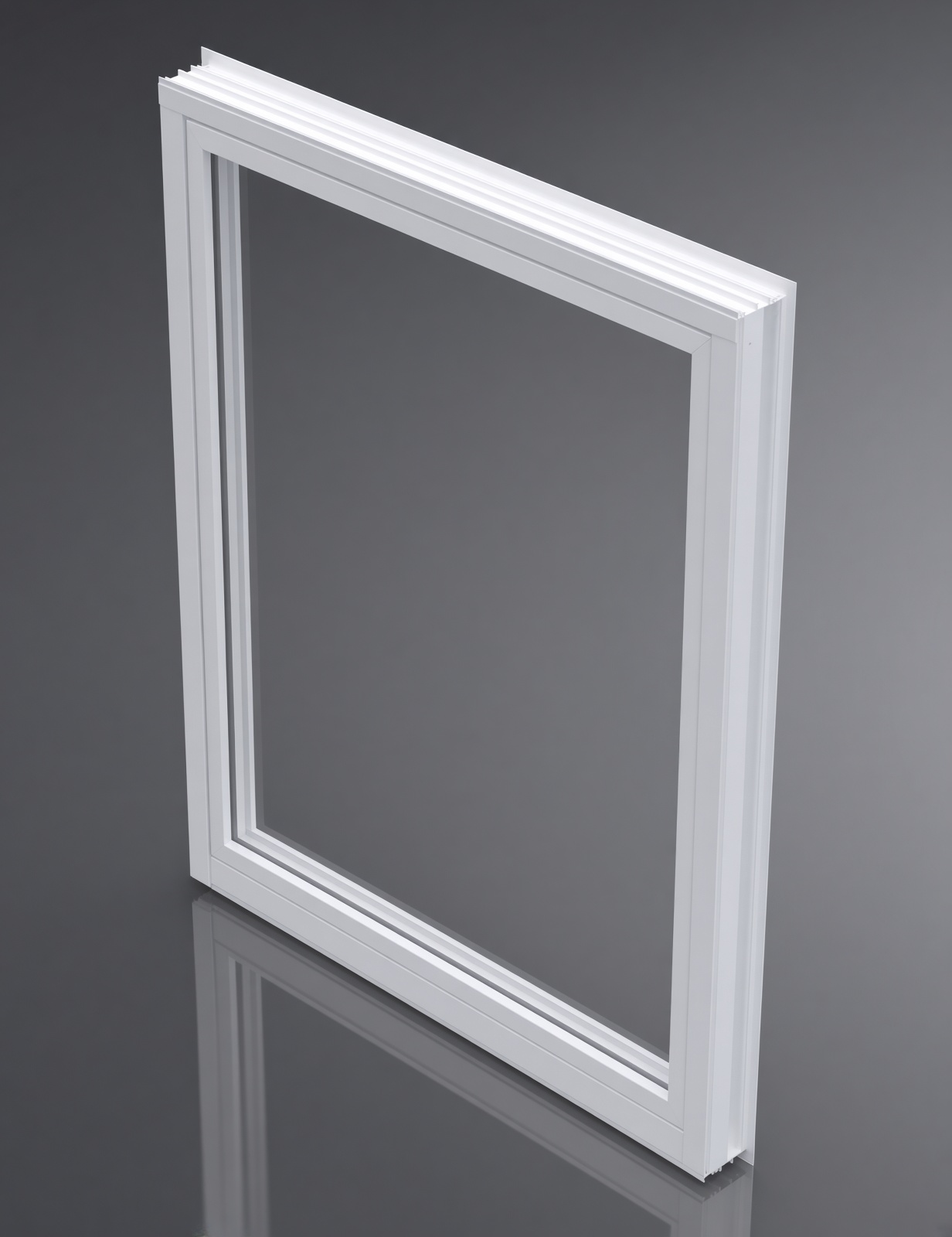

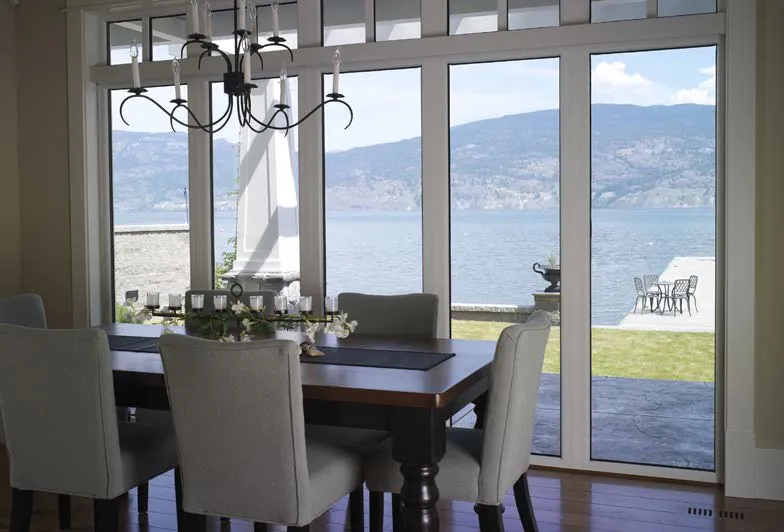

FIXED WINDOW · FL42637
Large Uninterrupted Views With Engineered Impact Protection
The Series 100 Fixed Window is a non-operable impact-resistant system designed for protection and energy efficiency while maximizing natural light. The source catalog lists Large & Small missile testing and multiple custom geometric configurations.
MAX PSF
+80 / -95
Max Panel
119″ × 119″
Frame
3.495″ × 1.930″
Approval
FL42637

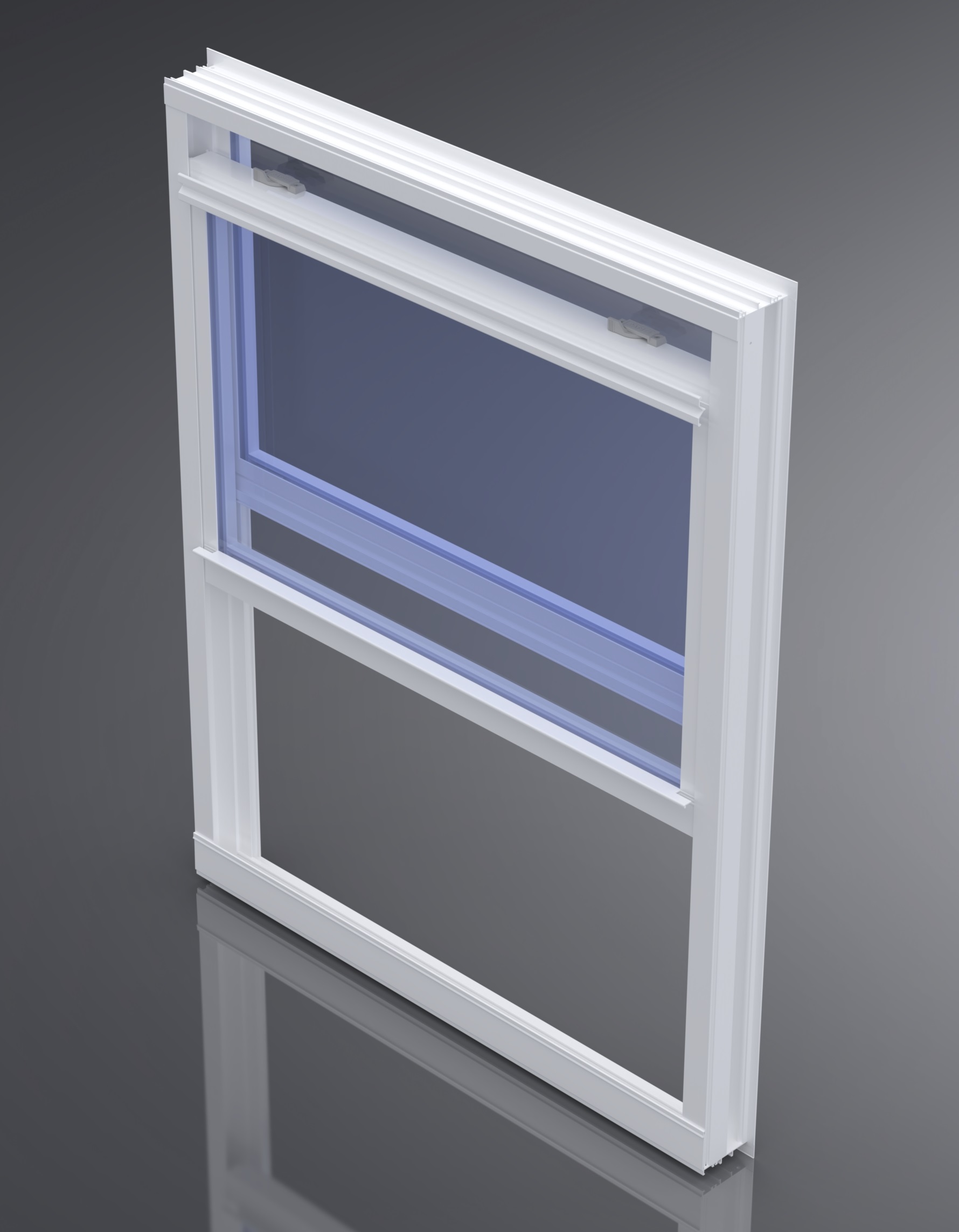

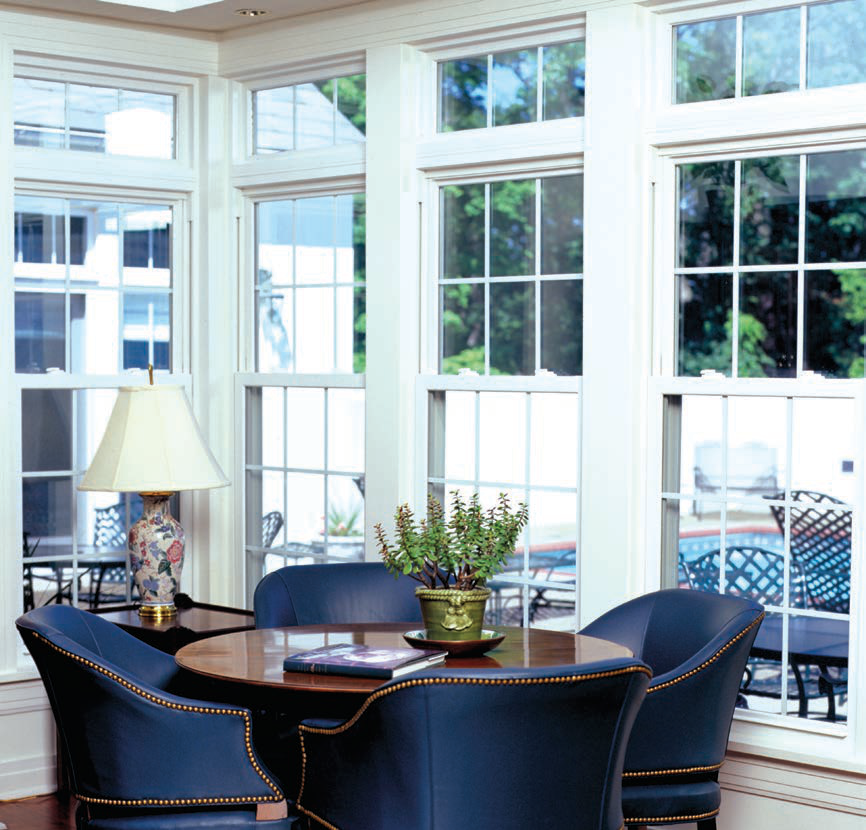

SINGLE & DOUBLE HUNG · FL42638
Traditional Operation. Modern Impact Performance.
A classic hung-window configuration with a fixed upper sash and vertically operable lower sash, with double-hung configurations available. The catalog emphasizes security, controlled ventilation and energy efficiency.
MAX PSF
+80 / -80
Max Sash Width
41″
Max Panel Height
95″
System
Non-tilt installation
Configurations
Equal-Lites · Unequal-Lites
Approval
FL42638

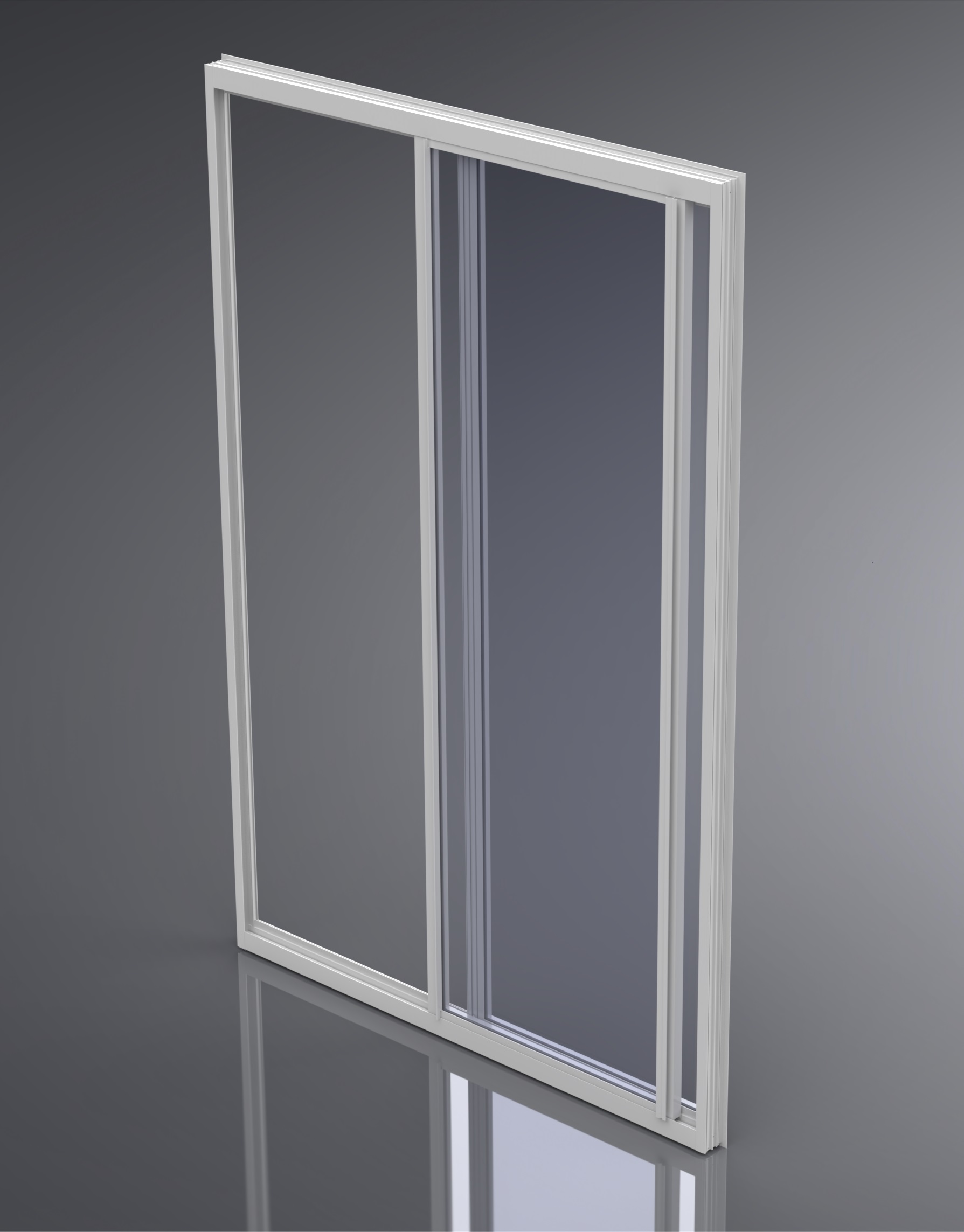

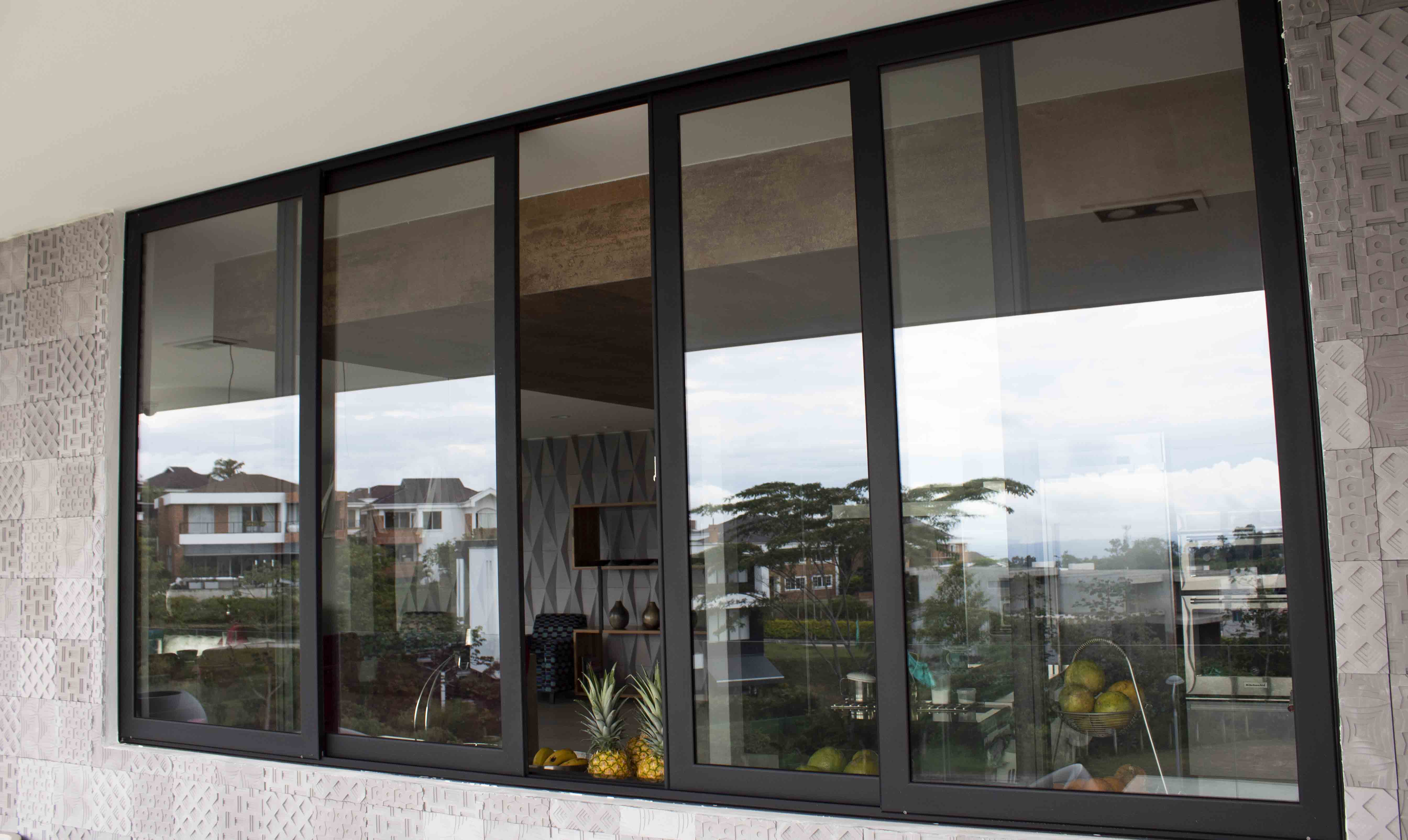

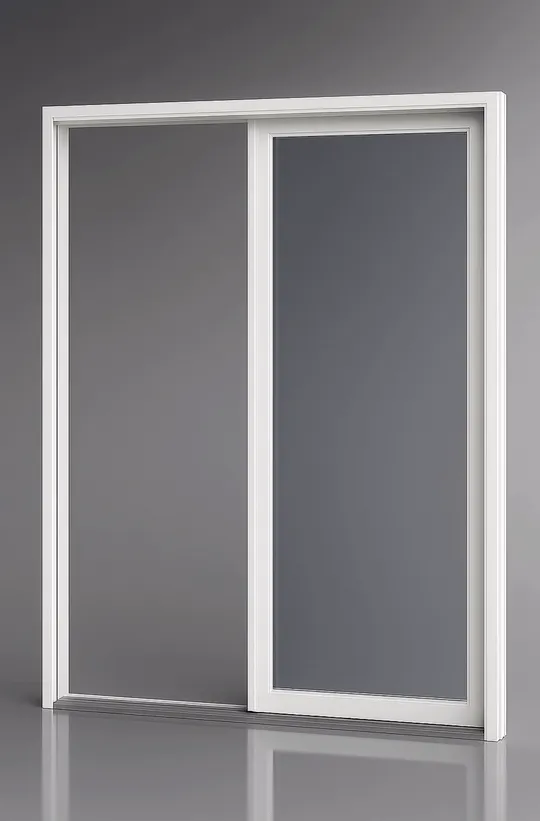

HORIZONTAL ROLLER · FL42639
Smooth Operation. Modern Lines. Impact Performance.
The Series 100 Horizontal Roller is designed for smooth horizontal operation, controlled ventilation and a contemporary architectural appearance. The catalog specifies an integrated isobaric chamber for enhanced sealing.
MAX PSF
+80 / -95
Max Panel
107″ × 62″
Side Frame
3.495″ × 4.178″
Top Frame
3.495″ × 3.495″
Chamber
Integrated isobaric chamber
Approval
FL42639

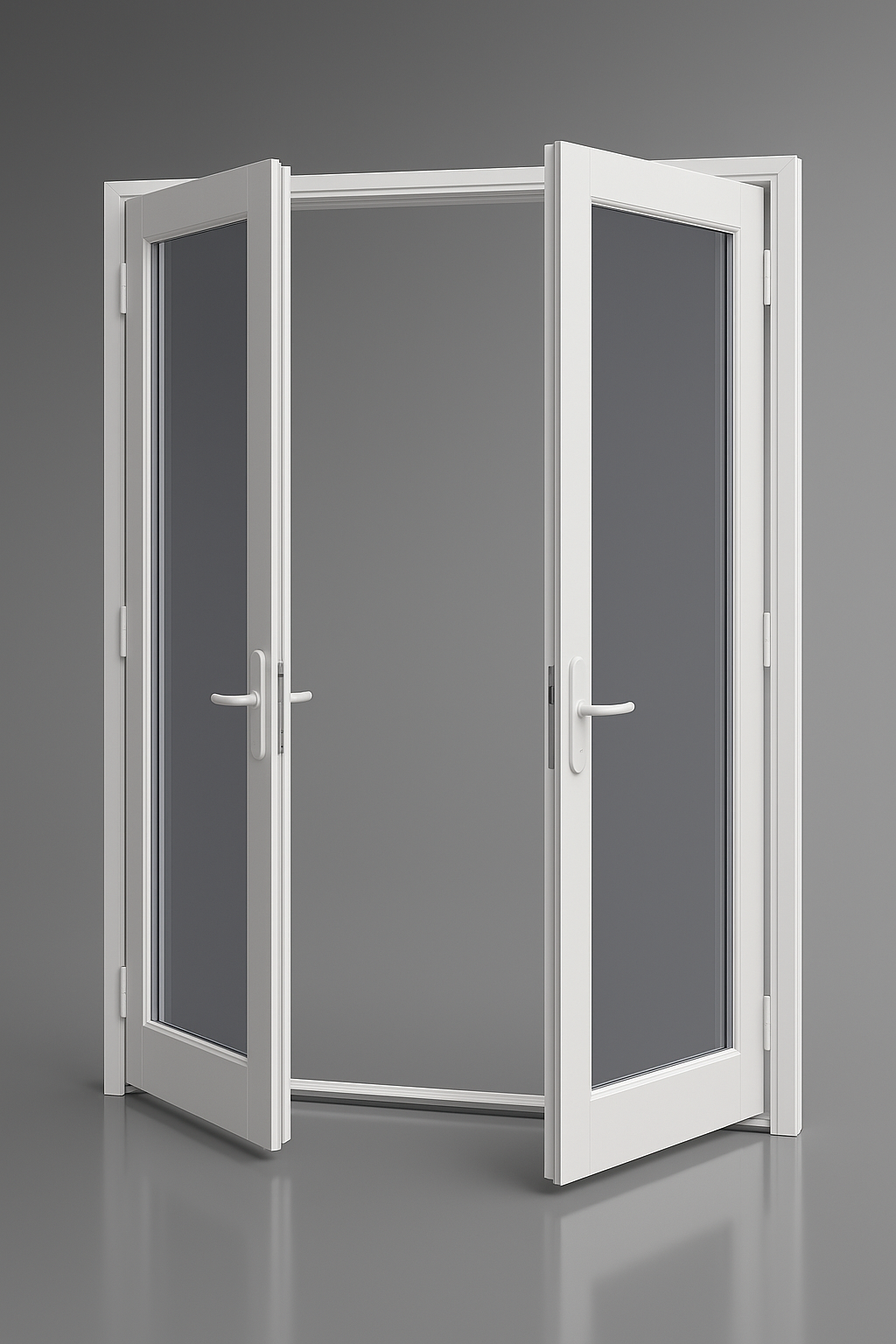

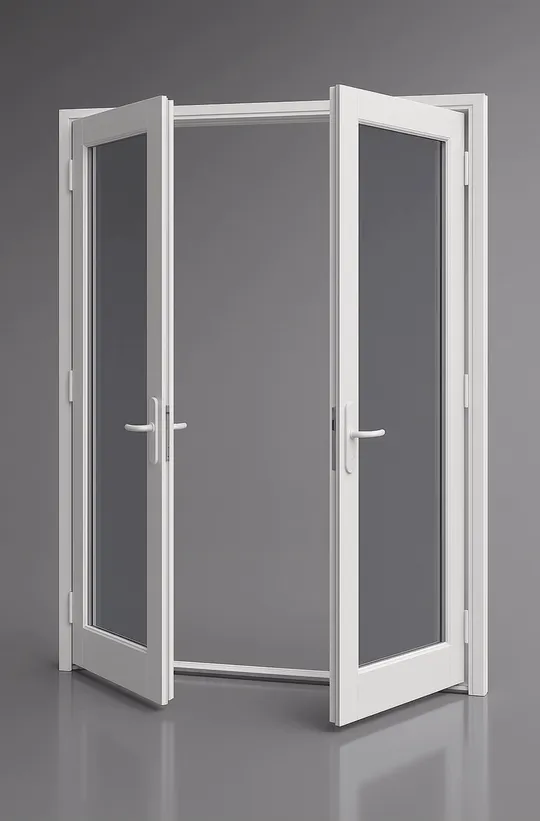

FRENCH DOOR · FL47458
Impact Protection Without Sacrificing the Entryway
Series 100 French Doors are elegant outswing residential doors with impact-resistant glass and premium aluminum construction, configurable with upper transoms and sidelites. The source catalog specifies ASSA ABLOY hardware.
120″
Max Panel Height
10-foot maximum panel height
176″
Max Total Opening
Including sidelites.
ASSA
ABLOY Hardware
Hardware platform named in the catalog.
3-Point
Lock System
3-point lock system with additional hardware options.
FINISHES & ENGINEERING
Designed to Fit the Architecture
Fixed Window: Approved mullion system and custom geometric configurations are identified in the catalog.
French Door: Single or double configurations, transoms and sidelites allow large architectural entry compositions.
Kynar / Powder
White · Bronze · Black
Anodized
Clear · Bronze · Black
Substrates
Poured concrete · Wood · Metal · Concrete block
Glazing
Laminated and insulated impact-glass options
Protect the Building. Preserve the Design.
Caribbean Skylights can help match the Impact Series 100 system to the opening,
architecture and project requirements.
